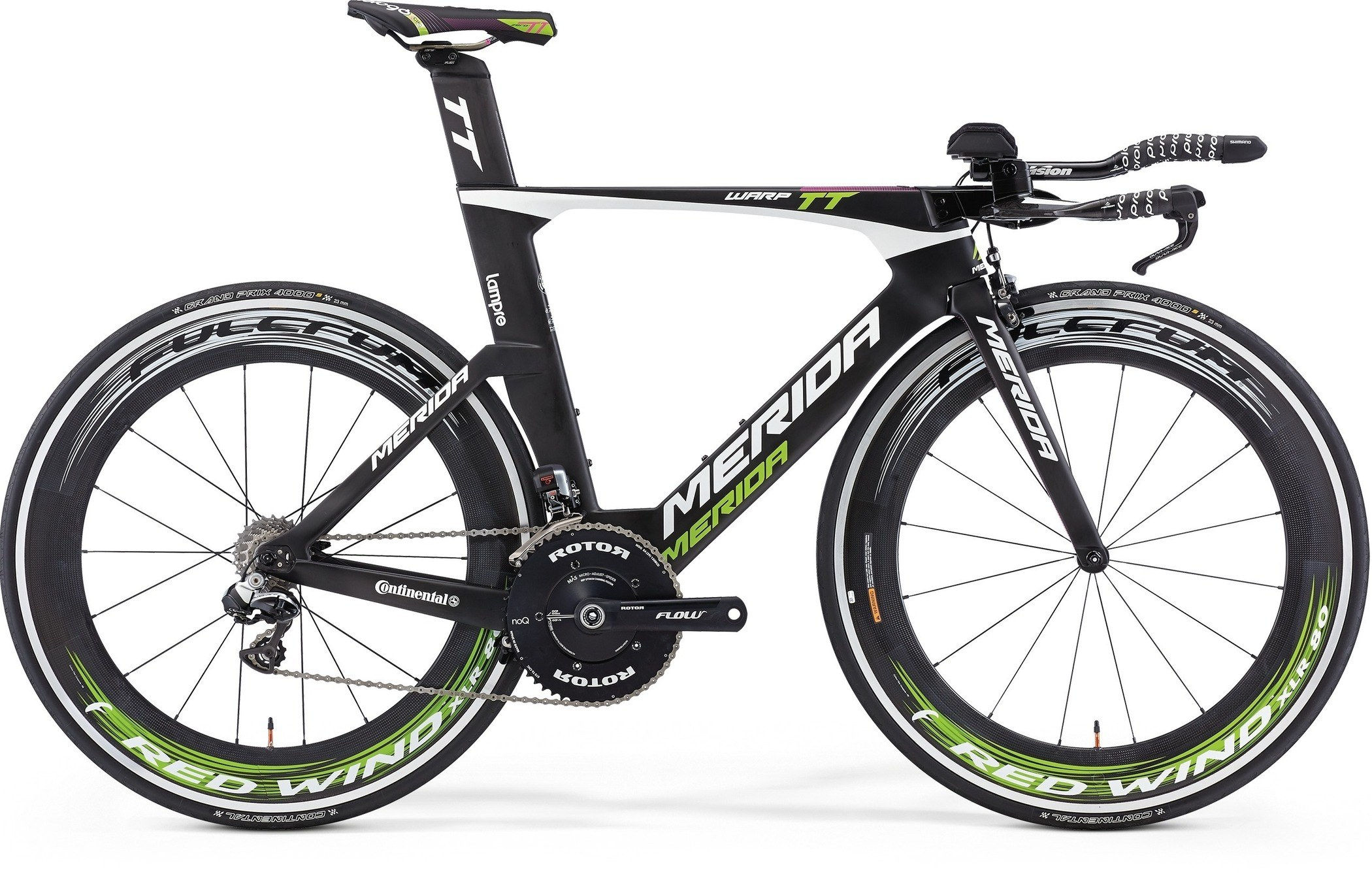

2014 Merida Warp TT geometry
Full frame geometry for the 2014 Merida Warp TT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 464 | 398 | 76.3 | 72 | 73 | 509 | 510 | 841 | 55 | 578 | 400 | 972 |
| 54 | 477 | 436 | 76.3 | 72 | 73 | 549 | 540 | 865 | 70 | 616 | 400 | 1006 |
| 57 | 504 | 448 | 76.3 | 72 | 105 | 570 | 570 | 893 | 70 | 640 | 400 | 1030 |
All measurements in millimetres unless marked (°) for angles.
