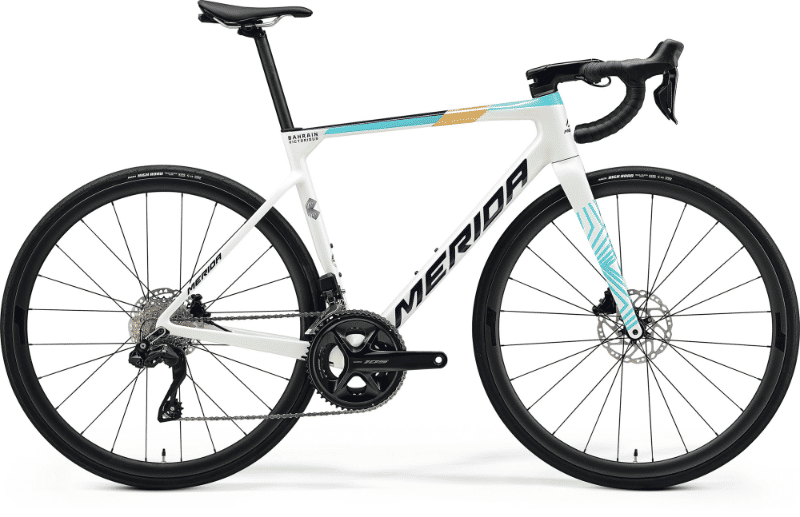

2025 Merida Scultura geometry
Full frame geometry for the 2025 Merida Scultura, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) |
|---|---|---|---|---|---|---|
| XXS | 517 | 377 | 74.5 | 70.5 | 105 | 435 |
| XS | 529 | 383 | 74 | 72 | 112 | 458 |
| S | 542 | 390 | 74 | 72.5 | 128 | 481 |
| M | 557 | 395 | 73.5 | 73.5 | 140 | 501 |
| L | 571 | 400 | 73 | 73.5 | 155 | 521 |
| XL | 593 | 409 | 73 | 74 | 176 | 550 |
All measurements in millimetres unless marked (°) for angles.
