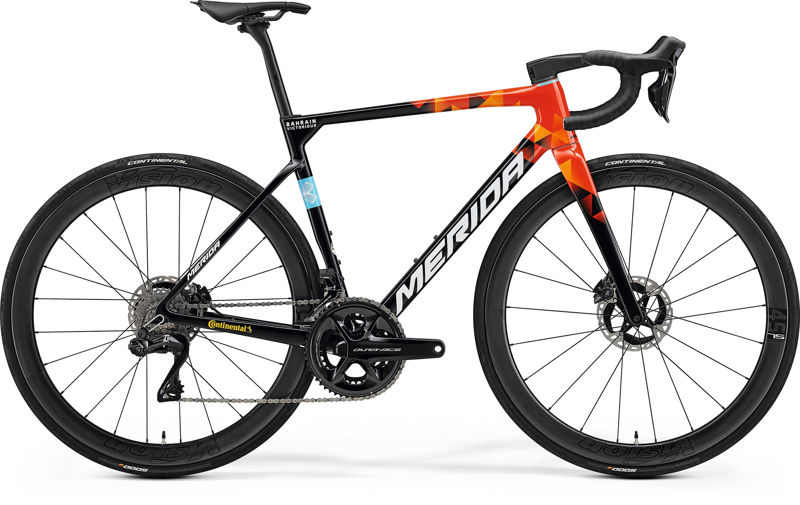

2022 Merida Scultura geometry
Full frame geometry for the 2022 Merida Scultura, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 517 | 377 | 74.5 | 70.5 | 105 | 520 | 435 | 721 | 70 | 408 | 985 |
| XS | 529 | 383 | 74 | 72 | 112 | 535 | 458 | 745 | 70 | 408 | 982 |
| S | 542 | 390 | 74 | 72.5 | 128 | 545 | 481 | 765 | 66 | 408 | 989 |
| M | 557 | 395 | 73.5 | 73.5 | 140 | 560 | 501 | 782 | 66 | 408 | 990 |
| L | 571 | 400 | 73 | 73.5 | 155 | 575 | 521 | 800 | 66 | 408 | 1000 |
| XL | 593 | 409 | 73 | 74 | 176 | 590 | 550 | 823 | 66 | 408 | 1010 |
All measurements in millimetres unless marked (°) for angles.
