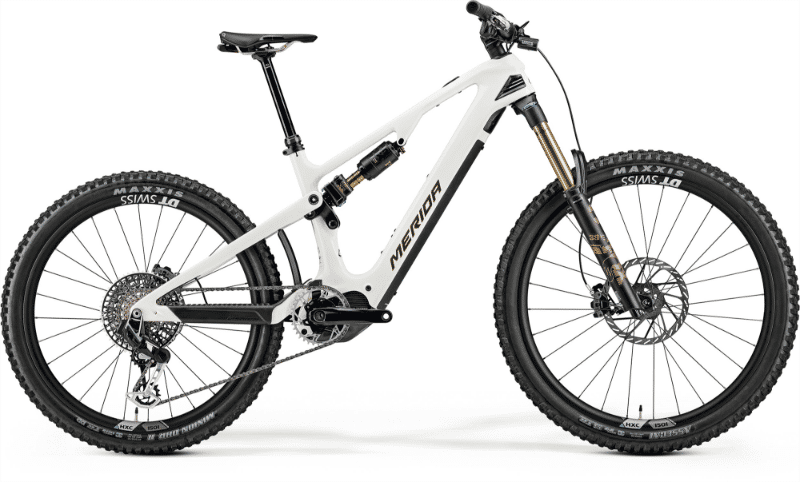

2026 Merida eONE-SIXTY geometry
Full frame geometry for the 2026 Merida eONE-SIXTY, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XShort | 624 | 419 | 78.5 | 64.4 | 100 | 546 | 400 | 776 | 9 | 446 | 1199 | 44 |
| Short | 628 | 439 | 78.5 | 64.4 | 105 | 567 | 410 | 770 | 9 | 446 | 1221 | 44 |
| Mid | 633 | 459 | 78.4 | 64.4 | 110 | 589 | 425 | 765 | 9 | 446 | 1244 | 44 |
| Long | 637 | 479 | 78.4 | 64.4 | 115 | 610 | 445 | 760 | 9 | 446 | 1266 | 44 |
| XLong | 642 | 499 | 78.3 | 64.4 | 120 | 632 | 465 | 755 | 9 | 446 | 1288 | 44 |
All measurements in millimetres unless marked (°) for angles.
