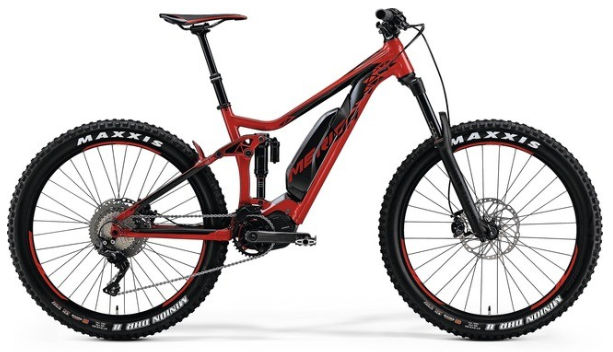

2018 Merida eOne Sixty geometry
Full frame geometry for the 2018 Merida eOne Sixty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 420 | 75 | 66.5 | 100 | 583 | 410 | 724 | 12 | 735 | 440 | 1174 |
| M | 626 | 440 | 75 | 66.5 | 120 | 608 | 430 | 727 | 12 | 763 | 440 | 1202 |
| L | 644 | 460 | 75 | 66.5 | 140 | 634 | 470 | 757 | 12 | 791 | 440 | 1230 |
| XL | 663 | 480 | 75 | 66.5 | 160 | 658 | 510 | 789 | 12 | 819 | 440 | 1258 |
All measurements in millimetres unless marked (°) for angles.
