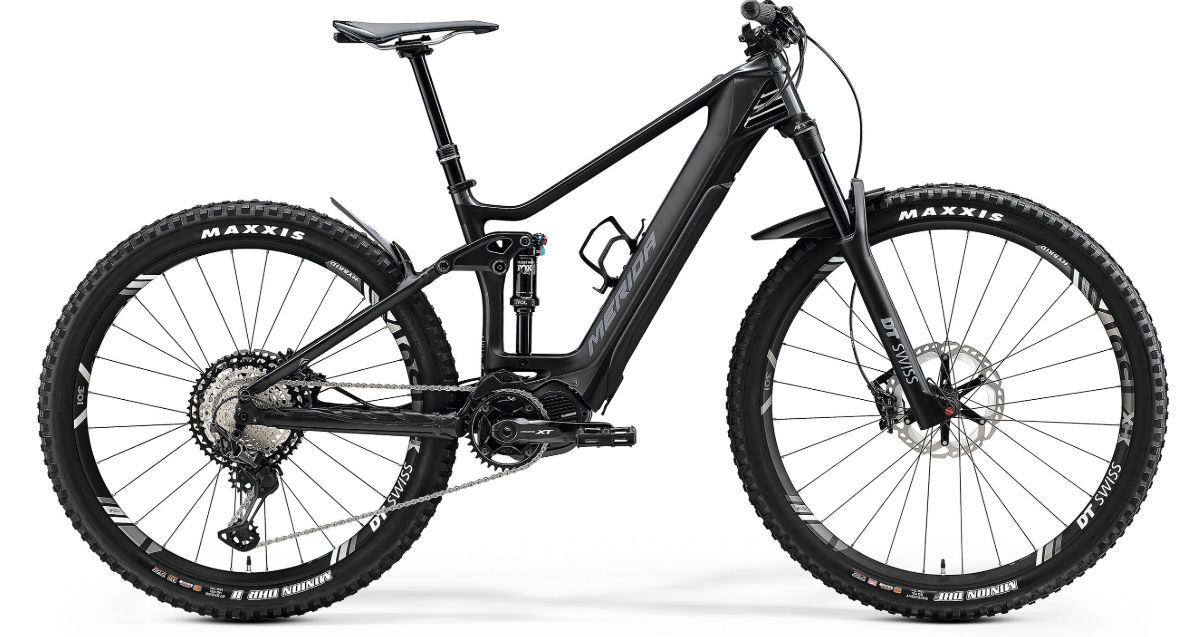

2019 Merida eONE-FORTY geometry
Full frame geometry for the 2019 Merida eONE-FORTY, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 410 | 76.5 | 66.5 | 110 | 560 | 405 | 814 | 24 | 722 | 440 | 1160 |
| M | 626 | 430 | 76.5 | 66.5 | 115 | 582 | 420 | 824 | 24 | 744 | 440 | 1182 |
| L | 631 | 450 | 76.5 | 66.5 | 120 | 602 | 440 | 836 | 24 | 766 | 440 | 1204 |
| XL | 644 | 470 | 76.5 | 66.5 | 135 | 626 | 470 | 859 | 24 | 792 | 440 | 1230 |
| XXL | 658 | 490 | 76.5 | 66.5 | 150 | 650 | 500 | 881 | 24 | 818 | 440 | 1256 |
All measurements in millimetres unless marked (°) for angles.
