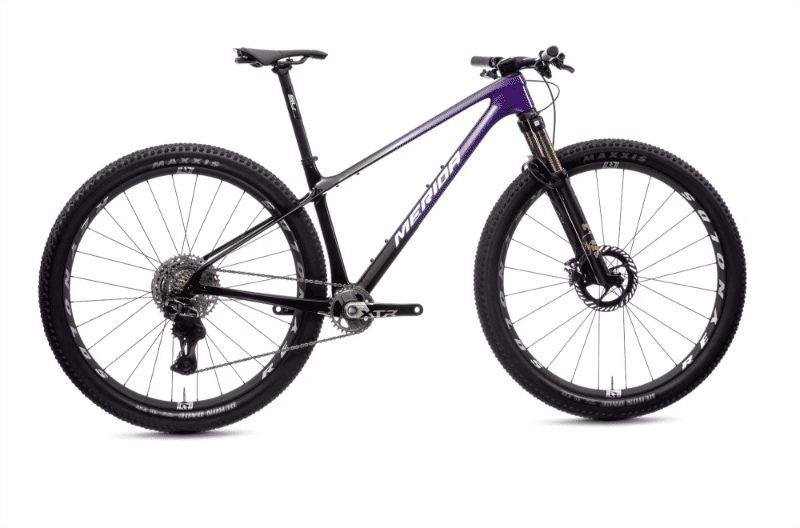

2026 Merida BIG.NINE Carbon geometry
Full frame geometry for the 2026 Merida BIG.NINE Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 606 | 452 | 75.3 | 68 | 95 | 611 | 410 | 704 | 65 | 433 | 1146 | 44 |
| S | 606 | 432 | 75.3 | 68 | 95 | 591 | 380 | 704 | 65 | 430 | 1123 | 44 |
| L | 615 | 472 | 75.3 | 68 | 105 | 633 | 440 | 710 | 65 | 436 | 1173 | 44 |
| XL | 624 | 492 | 75.3 | 68 | 115 | 655 | 470 | 731 | 65 | 439 | 1199 | 44 |
| XXL | 634 | 512 | 75.3 | 68 | 125 | 678 | 500 | 752 | 65 | 442 | 1226 | 44 |
All measurements in millimetres unless marked (°) for angles.
