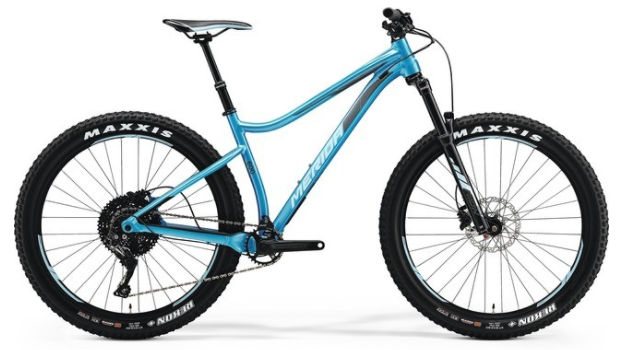

2017 Merida Big.Trail geometry
Full frame geometry for the 2017 Merida Big.Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 637 | 405 | 73.5 | 67.5 | 105 | 594 | 390 | 662 | 60 | 702 | 428 | 1123 |
| 17 | 647 | 425 | 73.5 | 67.5 | 115 | 616 | 440 | 699 | 60 | 725 | 428 | 1146 |
| 19 | 656 | 445 | 73.5 | 67.5 | 125 | 639 | 490 | 732 | 60 | 749 | 428 | 1170 |
| 21 | 665 | 465 | 73.5 | 67.5 | 135 | 662 | 540 | 763 | 60 | 773 | 428 | 1194 |
All measurements in millimetres unless marked (°) for angles.
