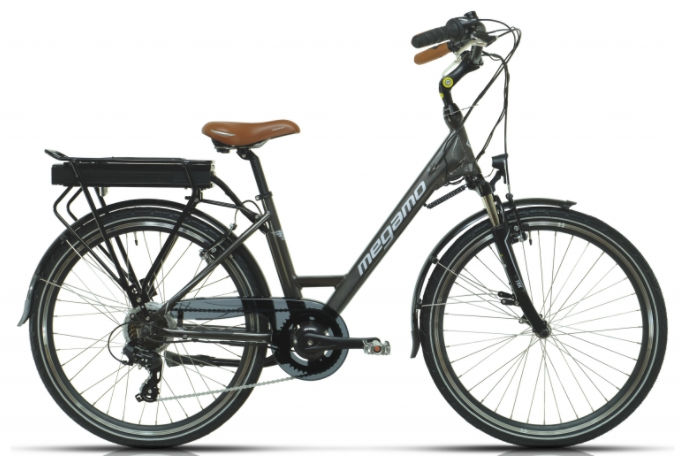

2017 Megamo Top City geometry
Full frame geometry for the 2017 Megamo Top City, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 16 (650) | 586 | 390 | 74 | 72 | 160 | 405 | 789 | 30 | 435 |
| 16 (700) | 640 | 400 | 74 | 72 | 160 | 405 | 804 | 68 | 462 |
All measurements in millimetres unless marked (°) for angles.
