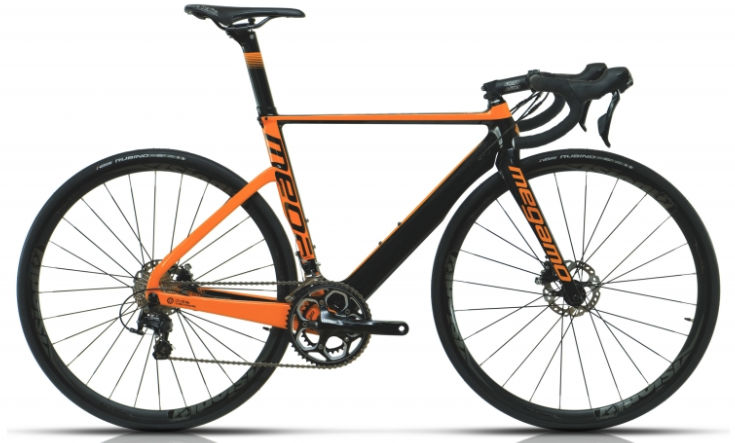

2017 Megamo Drym geometry
Full frame geometry for the 2017 Megamo Drym, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 52 | 510 | 396 | 75 | 73 | 102 | 520 | 786 | 66 | 415 |
| 54 | 529 | 409 | 75 | 73 | 122 | 540 | 806 | 66 | 415 |
| 56 | 548 | 426 | 75 | 73 | 142 | 560 | 826 | 66 | 415 |
| 58 | 567 | 441 | 75 | 73 | 162 | 580 | 846 | 66 | 415 |
All measurements in millimetres unless marked (°) for angles.
