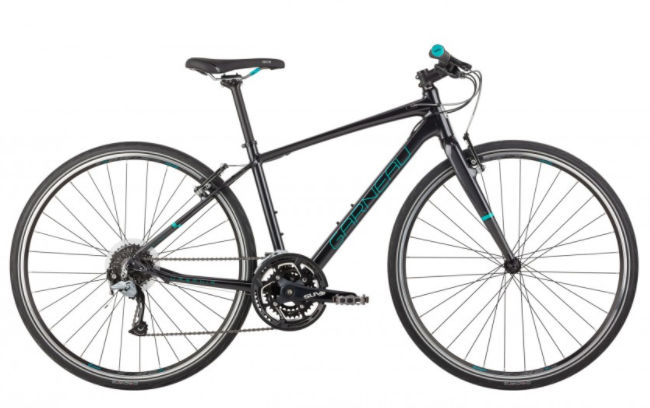

2018 Louis Garneau Women Urbania geometry
Full frame geometry for the 2018 Louis Garneau Women Urbania, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 375 | 75 | 69.2 | 120 | 521 | 400 | 706 | 70 | 445 | 1050 | 50 | 78 |
| M | 560 | 387 | 74.5 | 70.5 | 135 | 542 | 430 | 745 | 70 | 445 | 1052 | 50 | 70 |
| L | 584 | 398 | 74 | 70.5 | 160 | 565 | 460 | 770 | 70 | 445 | 1072 | 50 | 70 |
All measurements in millimetres unless marked (°) for angles.
