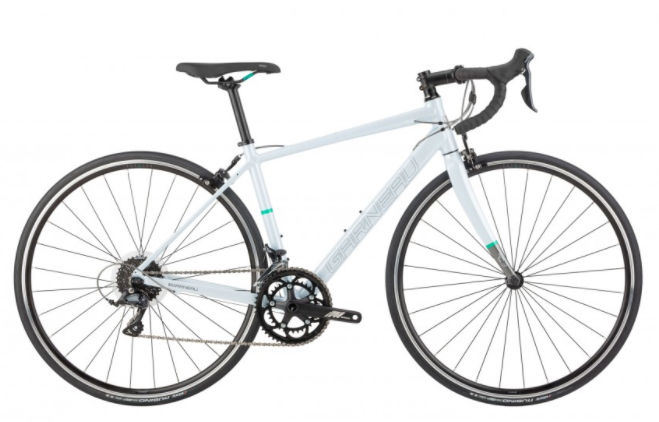

2018 Louis Garneau Axelle C geometry
Full frame geometry for the 2018 Louis Garneau Axelle C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 528 | 362 | 74.5 | 70.5 | 130 | 508 | 420 | 703 | 74 | 410 | 979 | 50 | 67 |
| M | 546 | 369 | 74.5 | 71.5 | 145 | 520 | 450 | 735 | 74 | 410 | 983 | 50 | 60 |
| L | 563 | 378 | 74 | 71.5 | 165 | 539 | 480 | 753 | 72 | 410 | 998 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
