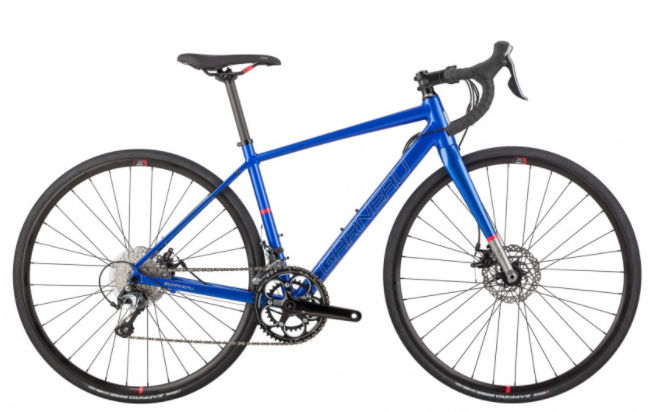

2018 Louis Garneau Axelle D geometry
Full frame geometry for the 2018 Louis Garneau Axelle D, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 529 | 362 | 74.5 | 70.5 | 120 | 508 | 420 | 708 | 74 | 415 | 987 | 52 | 65 |
| M | 547 | 369 | 74.5 | 71.5 | 135 | 520 | 450 | 732 | 74 | 415 | 991 | 52 | 59 |
| L | 564 | 377 | 74 | 71.5 | 155 | 539 | 480 | 763 | 72 | 415 | 1005 | 52 | 59 |
All measurements in millimetres unless marked (°) for angles.
