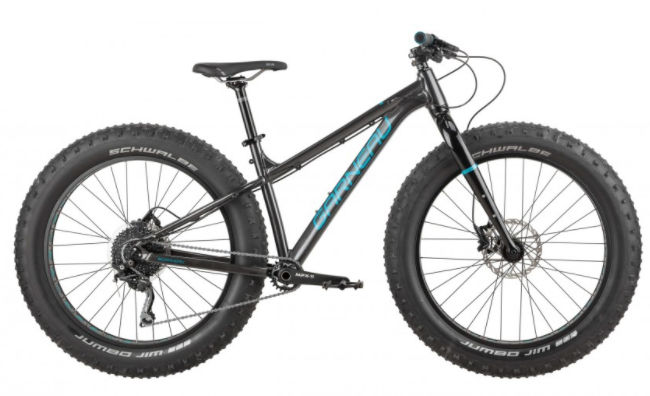

2018 Louis Garneau Duchess 2 geometry
Full frame geometry for the 2018 Louis Garneau Duchess 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 580 | 390 | 74 | 70 | 100 | 547 | 355 | 742 | 58 | 445 | 1075 | 51 | 85 |
| M | 590 | 410 | 74 | 70 | 110 | 571 | 406 | 762 | 58 | 445 | 1099 | 51 | 85 |
All measurements in millimetres unless marked (°) for angles.
