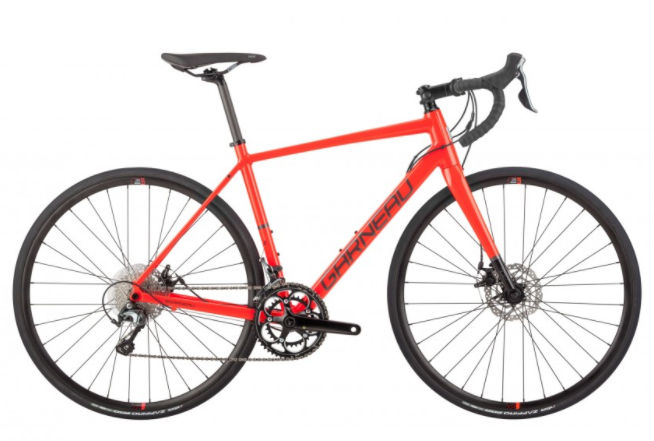

2018 Louis Garneau Axis D geometry
Full frame geometry for the 2018 Louis Garneau Axis D, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 371 | 74 | 71.5 | 130 | 526 | 470 | 746 | 72 | 415 | 991 | 52 | 59 |
| M | 564 | 378 | 73.5 | 71.5 | 155 | 545 | 500 | 769 | 72 | 415 | 1006 | 52 | 59 |
| L | 590 | 384 | 73 | 73 | 175 | 566 | 530 | 798 | 70 | 415 | 998 | 43 | 59 |
| XL | 609 | 393 | 72.8 | 73.2 | 195 | 583 | 560 | 823 | 70 | 415 | 1010 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
