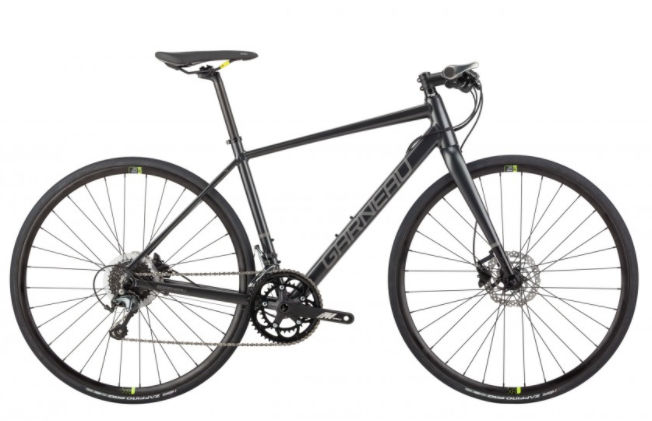

2018 Louis Garneau Axis F geometry
Full frame geometry for the 2018 Louis Garneau Axis F, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 552 | 395 | 74 | 71.5 | 130 | 555 | 450 | 737 | 72 | 430 | 1032 | 48 | 65 |
| M | 569 | 405 | 73.5 | 72 | 140 | 575 | 480 | 751 | 70 | 430 | 1043 | 48 | 62 |
| L | 589 | 415 | 73 | 72 | 160 | 596 | 510 | 781 | 70 | 430 | 1060 | 48 | 62 |
| XL | 616 | 425 | 72.5 | 72 | 190 | 619 | 540 | 826 | 68 | 430 | 1078 | 48 | 62 |
All measurements in millimetres unless marked (°) for angles.
