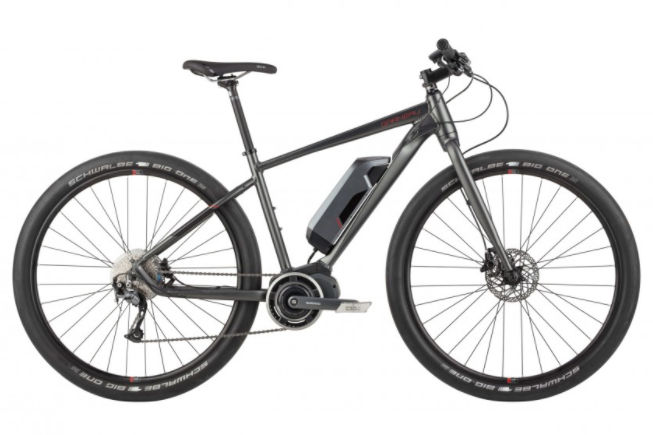

2018 Louis Garneau e-M1 / e-M2 geometry
Full frame geometry for the 2018 Louis Garneau e-M1 / e-M2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 403 | 74 | 71.5 | 100 | 570 | 406 | 754 | 70 | 480 | 1100 | 48 | 77 |
| M | 604 | 405 | 73 | 72 | 120 | 590 | 457 | 787 | 70 | 480 | 1104 | 48 | 73 |
| L | 618 | 421 | 73 | 72 | 140 | 610 | 508 | 827 | 70 | 480 | 1127 | 48 | 73 |
All measurements in millimetres unless marked (°) for angles.
