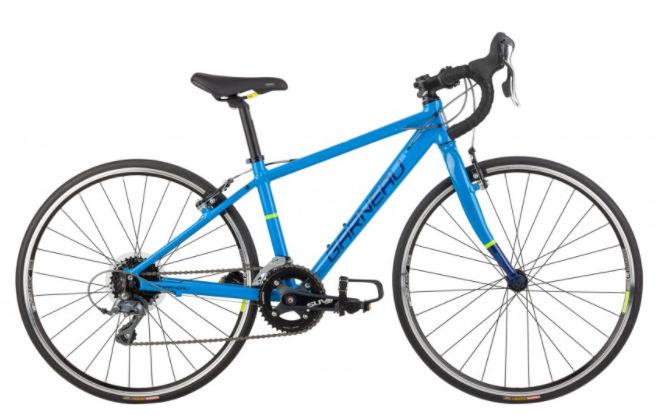

2018 Louis Garneau Axis Team MK II geometry
Full frame geometry for the 2018 Louis Garneau Axis Team MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 453 | 337 | 76 | 70.5 | 100 | 450 | 345 | 621 | 40 | 901 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
