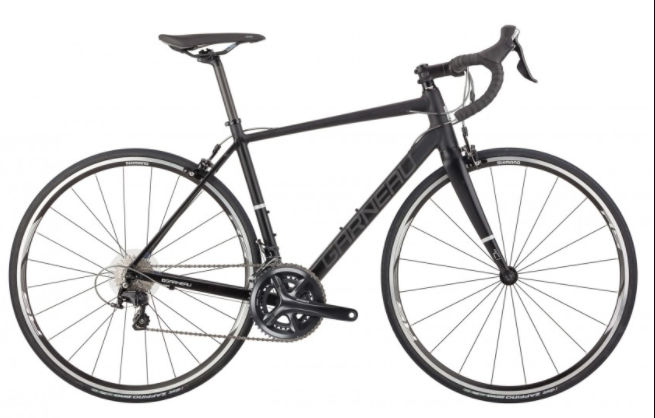

2018 Louis Garneau Axis C geometry
Full frame geometry for the 2018 Louis Garneau Axis C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 539 | 371 | 74 | 71.5 | 140 | 526 | 470 | 739 | 71 | 410 | 984 | 50 | 60 |
| M | 562 | 378 | 73.5 | 72.5 | 160 | 545 | 500 | 770 | 72 | 410 | 984 | 45 | 59 |
| L | 589 | 386 | 73 | 72.8 | 190 | 566 | 530 | 800 | 72 | 410 | 1007 | 45 | 58 |
| XL | 608 | 395 | 72.8 | 72.8 | 210 | 583 | 560 | 823 | 70 | 410 | 1012 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
