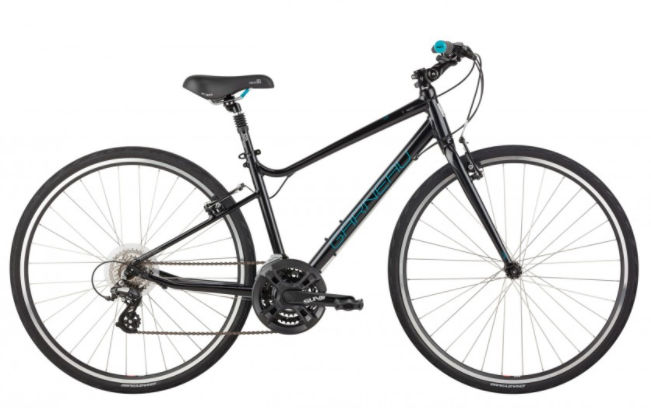

2018 Louis Garneau Women Espace 4 geometry
Full frame geometry for the 2018 Louis Garneau Women Espace 4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ML | 586 | 395 | 73.5 | 71 | 160 | 570 | 440 | 695 | 70 | 450 | 1071 | 50 | 65 |
| SM | 617 | 380 | 74.5 | 70 | 140 | 539 | 410 | 687 | 70 | 450 | 1060 | 50 | 71 |
All measurements in millimetres unless marked (°) for angles.
