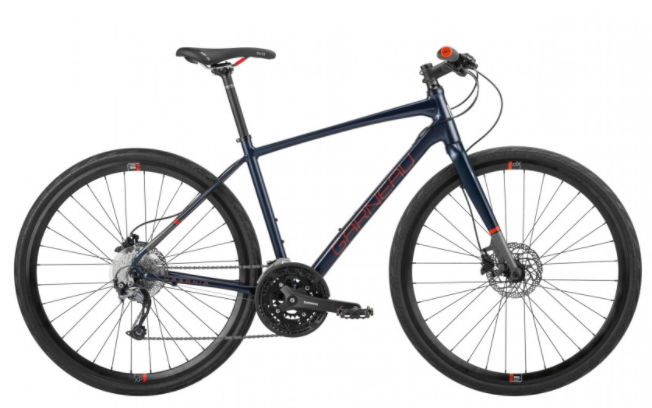

2018 Louis Garneau Urbania geometry
Full frame geometry for the 2018 Louis Garneau Urbania, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 550 | 387 | 74 | 70.5 | 125 | 545 | 435 | 741 | 70 | 445 | 1050 | 50 | 70 |
| M | 574 | 397 | 73.5 | 70.5 | 150 | 567 | 470 | 769 | 70 | 445 | 1068 | 50 | 70 |
| L | 598 | 406 | 73 | 72 | 160 | 596 | 505 | 801 | 65 | 445 | 1073 | 45 | 69 |
| XL | 624 | 415 | 72.5 | 72 | 200 | 612 | 540 | 830 | 65 | 445 | 1085 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
