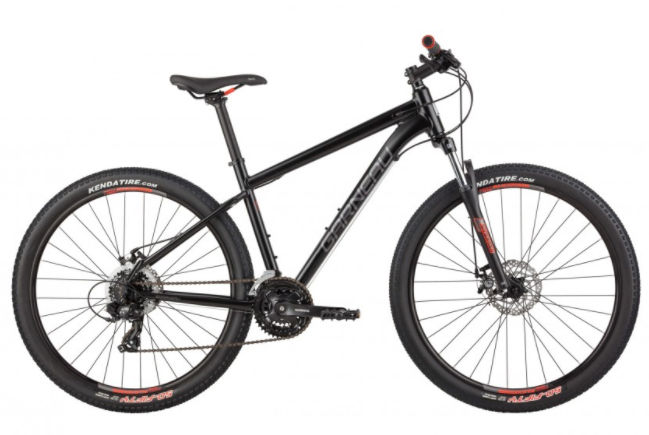

2018 Louis Garneau Trust 273 geometry
Full frame geometry for the 2018 Louis Garneau Trust 273, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 583 | 367 | 73 | 69 | 110 | 547 | 381 | 746 | 47 | 435 | 1050 | 42 | 88 |
| M | 597 | 389 | 73 | 69 | 125 | 573 | 432 | 775 | 47 | 435 | 1078 | 42 | 88 |
| L | 611 | 411 | 73 | 69 | 140 | 600 | 483 | 803 | 47 | 435 | 1105 | 42 | 88 |
All measurements in millimetres unless marked (°) for angles.
