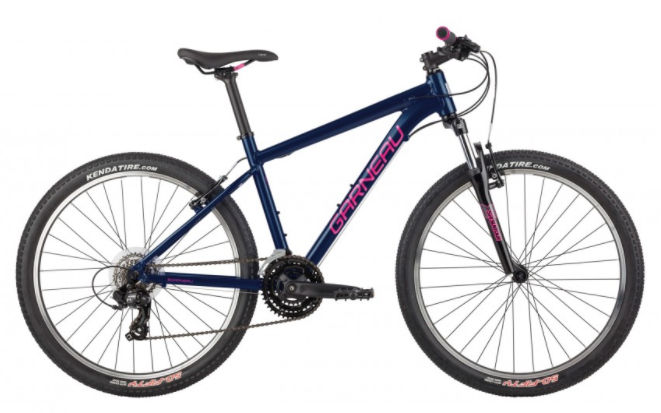

2018 Louis Garneau Trust 264 geometry
Full frame geometry for the 2018 Louis Garneau Trust 264, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 549 | 372 | 74.5 | 70.5 | 90 | 525 | 330 | 734 | 32 | 430 | 1022 | 40 | 76 |
| S | 561 | 379 | 74 | 71 | 100 | 540 | 381 | 762 | 32 | 430 | 1032 | 40 | 76 |
| M | 570 | 385 | 73 | 71 | 110 | 559 | 432 | 790 | 32 | 430 | 1041 | 40 | 76 |
| L | 589 | 395 | 72.5 | 71 | 130 | 581 | 483 | 804 | 32 | 430 | 1058 | 40 | 76 |
All measurements in millimetres unless marked (°) for angles.
