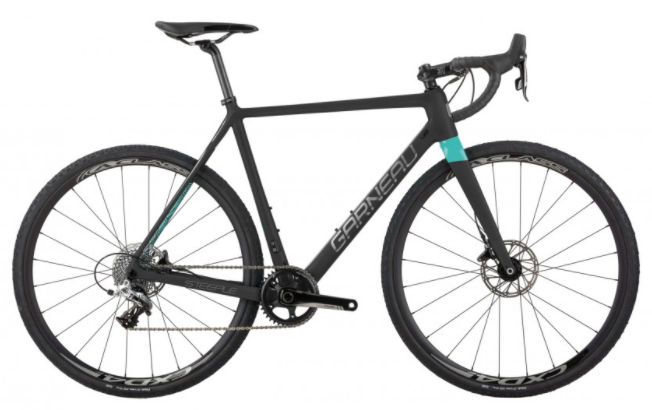

2018 Louis Garneau Steeple geometry
Full frame geometry for the 2018 Louis Garneau Steeple, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 522 | 375 | 74.5 | 71 | 110 | 520 | 520 | 771 | 66 | 425 | 1000 | 45 | 71 |
| M | 539 | 386 | 74 | 71.5 | 125 | 540 | 540 | 786 | 66 | 425 | 1010 | 45 | 68 |
| L | 554 | 391 | 73.5 | 72 | 140 | 555 | 560 | 804 | 66 | 425 | 1017 | 45 | 65 |
| XL | 566 | 397 | 73 | 72.5 | 150 | 570 | 580 | 818 | 66 | 425 | 1022 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
