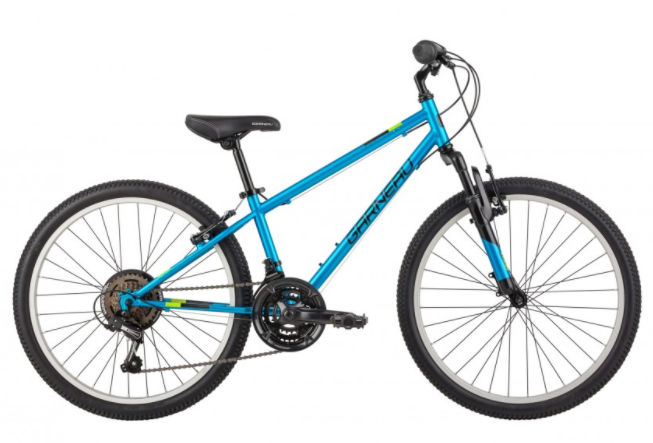

2018 Louis Garneau Rapido 241 geometry
Full frame geometry for the 2018 Louis Garneau Rapido 241, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 509 | 342 | 71.5 | 69 | 120 | 513 | 320 | 644 | 405 | 967 | 37 | 77 |
All measurements in millimetres unless marked (°) for angles.
