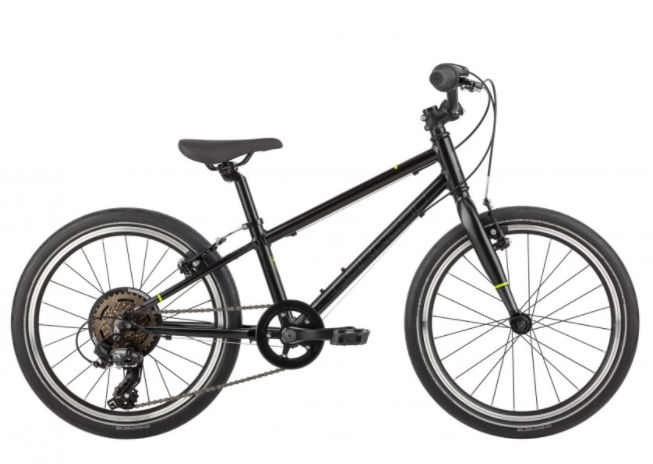

2018 Louis Garneau Petit Louis / Queen 20 geometry
Full frame geometry for the 2018 Louis Garneau Petit Louis / Queen 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 407 | 318 | 71 | 70 | 110 | 458 | 250 | 530 | 21 | 354 | 837 | 24 | 65 |
All measurements in millimetres unless marked (°) for angles.
