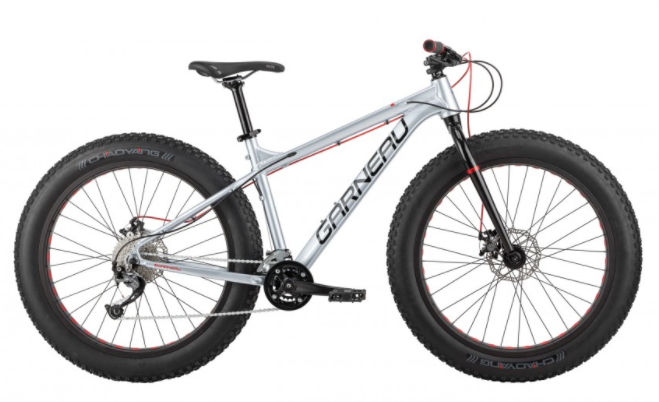

2018 Louis Garneau Gros Louis 3 geometry
Full frame geometry for the 2018 Louis Garneau Gros Louis 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 578 | 414 | 74 | 69 | 105 | 580 | 395 | 747 | 58 | 450 | 1108 | 45 | 94 |
| M | 587 | 435 | 73.5 | 69 | 115 | 611 | 445 | 773 | 58 | 450 | 1133 | 45 | 94 |
| L | 596 | 455 | 73.5 | 69 | 125 | 635 | 495 | 809 | 58 | 450 | 1156 | 45 | 94 |
| XL | 606 | 475 | 73.5 | 69 | 135 | 657 | 545 | 838 | 58 | 450 | 1180 | 45 | 94 |
All measurements in millimetres unless marked (°) for angles.
