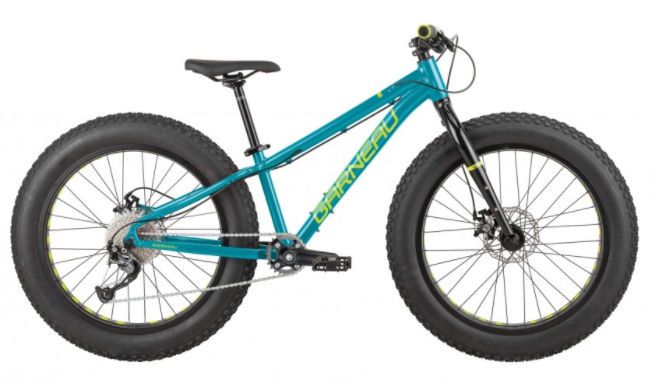

2018 Louis Garneau Gros Louis 24 geometry
Full frame geometry for the 2018 Louis Garneau Gros Louis 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OS | 530 | 372 | 73 | 69.5 | 110 | 536 | 305 | 682 | 45 | 425 | 1022 | 43 | 83 |
All measurements in millimetres unless marked (°) for angles.
