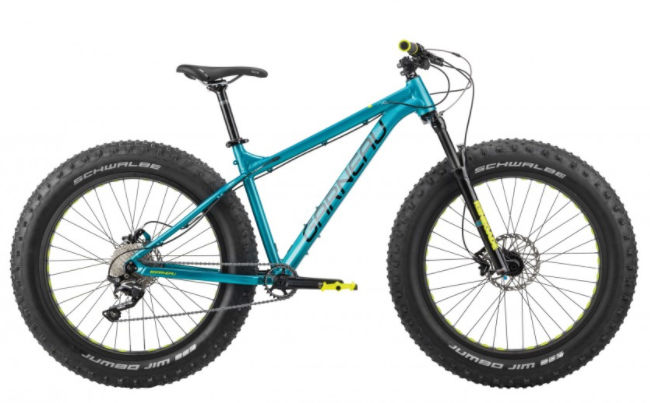

2018 Louis Garneau Gros Louis 1-2 geometry
Full frame geometry for the 2018 Louis Garneau Gros Louis 1-2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 410 | 74 | 69 | 105 | 583 | 395 | 767 | 58 | 450 | 1117 | 51 | 92 |
| M | 604 | 430 | 73.5 | 69 | 115 | 611 | 445 | 793 | 58 | 450 | 1140 | 51 | 92 |
| L | 613 | 450 | 73.5 | 69 | 125 | 634 | 495 | 817 | 58 | 450 | 1164 | 51 | 92 |
| XL | 622 | 470 | 73.5 | 69 | 135 | 657 | 545 | 846 | 58 | 450 | 1188 | 51 | 92 |
All measurements in millimetres unless marked (°) for angles.
