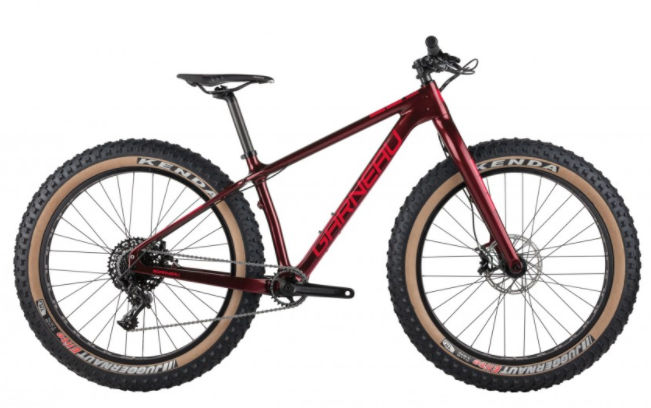

2018 Louis Garneau Gros Louis 0 geometry
Full frame geometry for the 2018 Louis Garneau Gros Louis 0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 406 | 73.5 | 68.5 | 100 | 580 | 406 | 694 | 60 | 445 | 1103 | 45 | 95 |
| M | 595 | 423 | 73 | 68.5 | 110 | 605 | 457 | 735 | 60 | 445 | 1123 | 45 | 95 |
| L | 614 | 437 | 73 | 68.5 | 130 | 625 | 505 | 777 | 60 | 445 | 1145 | 45 | 95 |
All measurements in millimetres unless marked (°) for angles.
