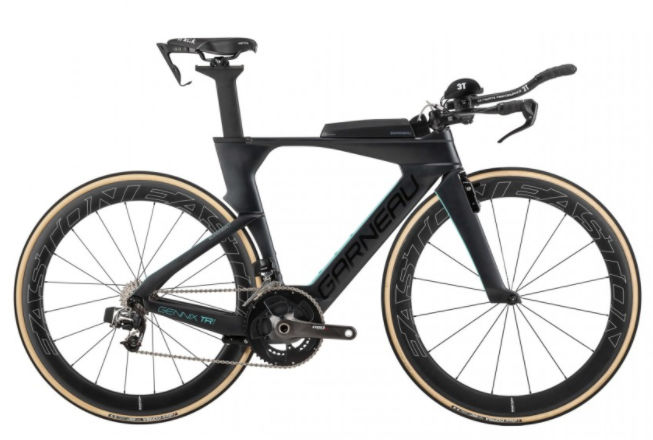

2018 Louis Garneau Gennix TR1 geometry
Full frame geometry for the 2018 Louis Garneau Gennix TR1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 494 | 395 | 78 | 71.5 | 86 | 503 | 495 | 743 | 75 | 395 | 963 | 44 | 62 |
| M | 518 | 412 | 78 | 72 | 111 | 525 | 520 | 767 | 75 | 395 | 987 | 44 | 61 |
| L | 542 | 428 | 78 | 72.5 | 136 | 545 | 545 | 792 | 75 | 395 | 1010 | 44 | 61 |
| XL | 566 | 445 | 78 | 72.5 | 161 | 567 | 565 | 815 | 75 | 395 | 1034 | 44 | 60 |
All measurements in millimetres unless marked (°) for angles.
