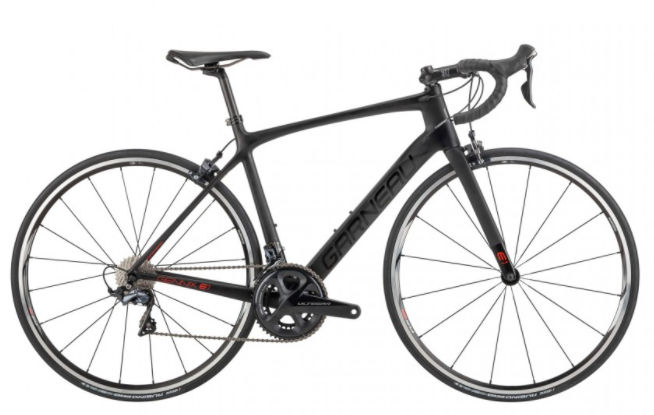

2018 Louis Garneau Gennix E1 MKII geometry
Full frame geometry for the 2018 Louis Garneau Gennix E1 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 369 | 74 | 71 | 147 | 526 | 480 | 742 | 71 | 583 | 412 | 985 | 53 | 60 |
| S | 565 | 378 | 73.5 | 72.5 | 167 | 546 | 510 | 768 | 69 | 586 | 415 | 991 | 45 | 59 |
| M | 590 | 387 | 73.2 | 72.8 | 192 | 565 | 540 | 798 | 69 | 600 | 415 | 1005 | 45 | 58 |
| L | 620 | 396 | 72.5 | 73 | 225 | 591 | 570 | 824 | 67 | 615 | 418 | 1024 | 45 | 56 |
All measurements in millimetres unless marked (°) for angles.
