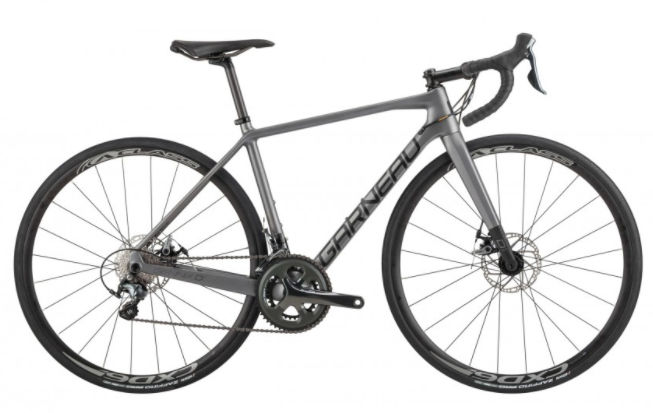

2018 Louis Garneau Gennix D1 geometry
Full frame geometry for the 2018 Louis Garneau Gennix D1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 366 | 74.5 | 71.5 | 115 | 515 | 460 | 734 | 72 | 415 | 981 | 53 | 59 |
| S | 534 | 367 | 74 | 72.2 | 125 | 530 | 480 | 750 | 72 | 415 | 980 | 45 | 64 |
| M | 548 | 382 | 73.5 | 73 | 140 | 545 | 500 | 770 | 69 | 415 | 985 | 45 | 59 |
| L | 563 | 393 | 73 | 73 | 155 | 560 | 520 | 789 | 69 | 415 | 1000 | 45 | 59 |
| XL | 582 | 403 | 73 | 73.5 | 175 | 580 | 540 | 806 | 67 | 415 | 1012 | 45 | 56 |
| XXL | 601 | 407 | 73 | 73.5 | 195 | 595 | 570 | 830 | 67 | 415 | 1021 | 45 | 56 |
All measurements in millimetres unless marked (°) for angles.
