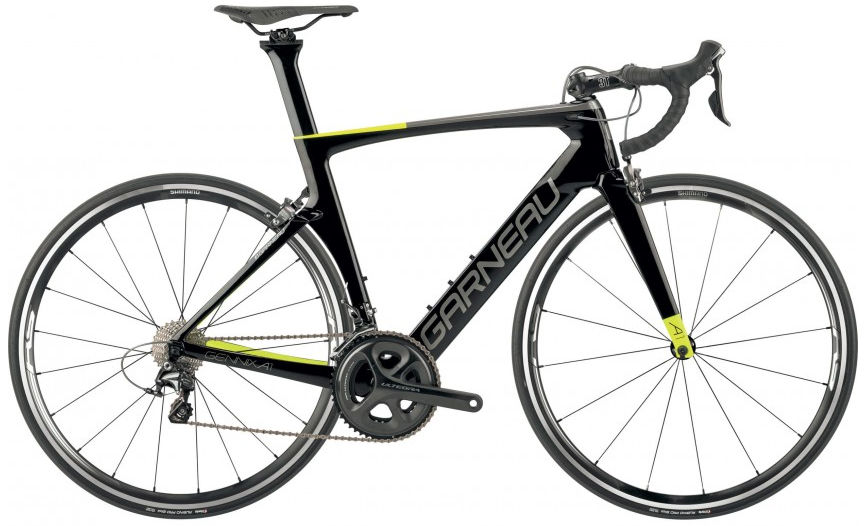

2017 Louis Garneau Gennix A1 geometry
Full frame geometry for the 2017 Louis Garneau Gennix A1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 368 | 74.5 | 71.5 | 106 | 511 | 450 | 74 | 405 | 964 | 49 | 61 |
| S | 534 | 375 | 74 | 72.2 | 129 | 529 | 480 | 74 | 405 | 972 | 49 | 57 |
| M | 556 | 382 | 73.5 | 73.2 | 149 | 547 | 510 | 72 | 405 | 971 | 43 | 57 |
| L | 576 | 389 | 73 | 73.2 | 170 | 565 | 530 | 72 | 407 | 986 | 43 | 57 |
| XL | 594 | 396 | 73 | 73.4 | 191 | 580 | 570 | 69 | 407 | 999 | 43 | 56 |
| XXL | 610 | 403 | 73 | 73.4 | 208 | 595 | 600 | 69 | 407 | 1011 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
