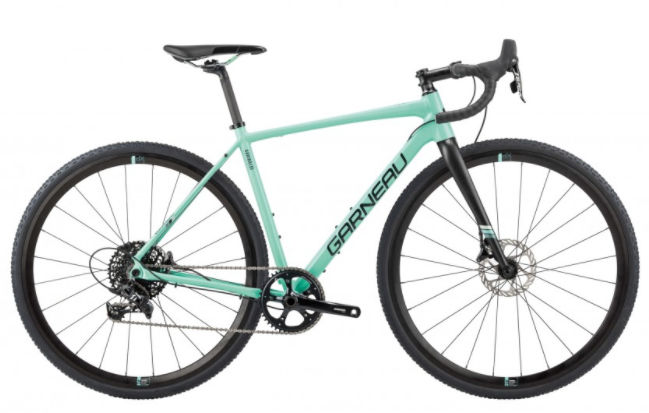

2018 Louis Garneau Gardibaldi geometry
Full frame geometry for the 2018 Louis Garneau Gardibaldi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 542 | 370 | 74 | 70.2 | 105 | 527 | 470 | 756 | 80 | 430 | 1011 | 45 | 76 |
| M | 559 | 378 | 73.5 | 71.5 | 130 | 545 | 500 | 772 | 78 | 430 | 1014 | 45 | 68 |
| L | 581 | 386 | 73 | 72.5 | 140 | 564 | 530 | 798 | 78 | 430 | 1019 | 45 | 61 |
| XL | 604 | 394 | 72.8 | 72.8 | 175 | 582 | 560 | 833 | 75 | 430 | 1032 | 45 | 59 |
All measurements in millimetres unless marked (°) for angles.
