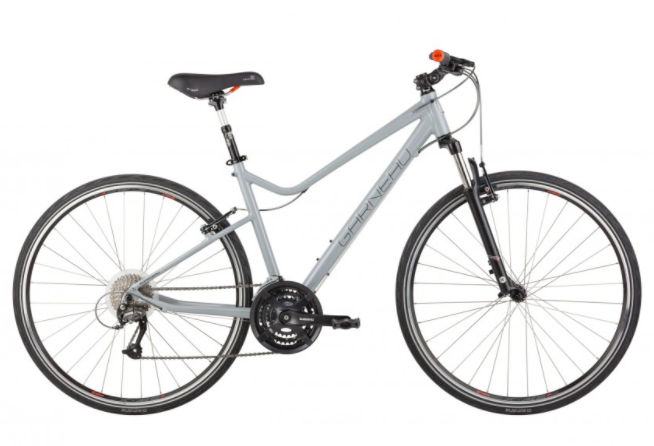

2018 Louis Garneau Espace 3 geometry
Full frame geometry for the 2018 Louis Garneau Espace 3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 395 | 73.5 | 71 | 110 | 581 | 440 | 697 | 70 | 450 | 1080 | 46 | 71 |
| M | 634 | 410 | 73 | 71 | 130 | 603 | 470 | 710 | 65 | 450 | 1100 | 46 | 71 |
| L | 643 | 425 | 72.5 | 71 | 140 | 629 | 500 | 740 | 65 | 450 | 1119 | 46 | 71 |
All measurements in millimetres unless marked (°) for angles.
