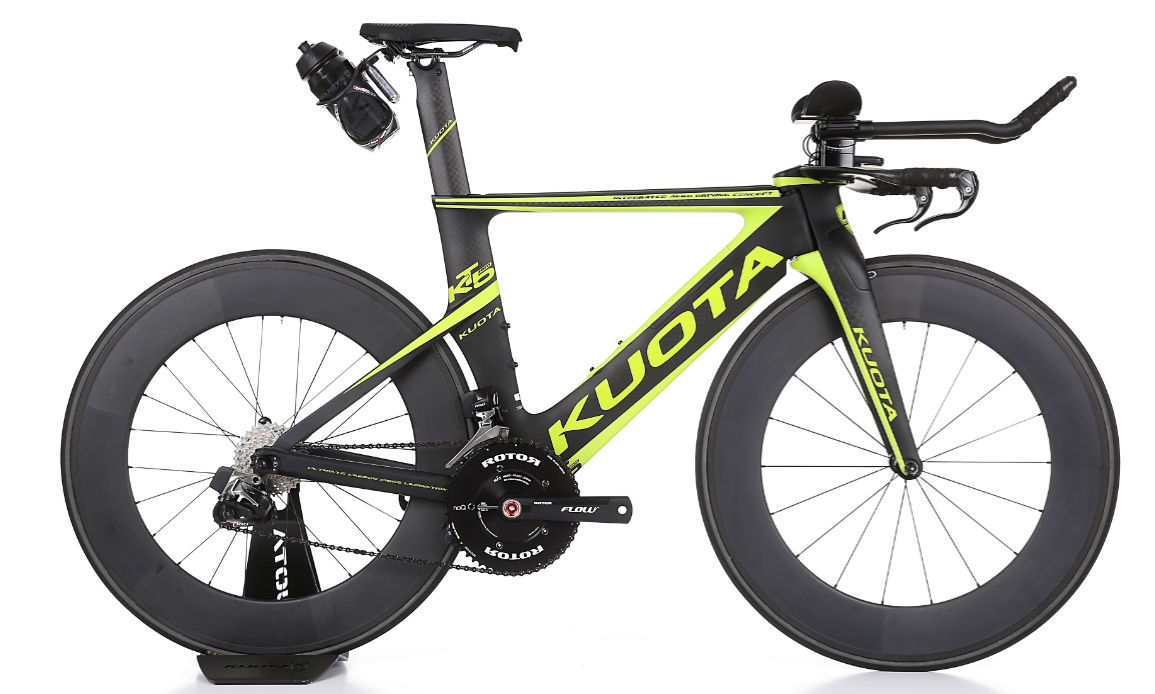

2018 Kuota KT05 geometry
Full frame geometry for the 2018 Kuota KT05, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/48 | 472 | 404 | 78.5 | 71.5 | 68 | 500 | 455 | 716 | 70 | 398 | 977 | 45 |
| S/52 | 484 | 420 | 78.5 | 72 | 78 | 518 | 475 | 745 | 70 | 398 | 993 | 45 |
| M/54 | 503 | 438 | 78.5 | 72 | 98 | 543 | 505 | 773 | 70 | 398 | 1017 | 45 |
| L/57 | 514 | 456 | 78.5 | 72.5 | 108 | 561 | 528 | 784 | 70 | 398 | 1036 | 45 |
All measurements in millimetres unless marked (°) for angles.
