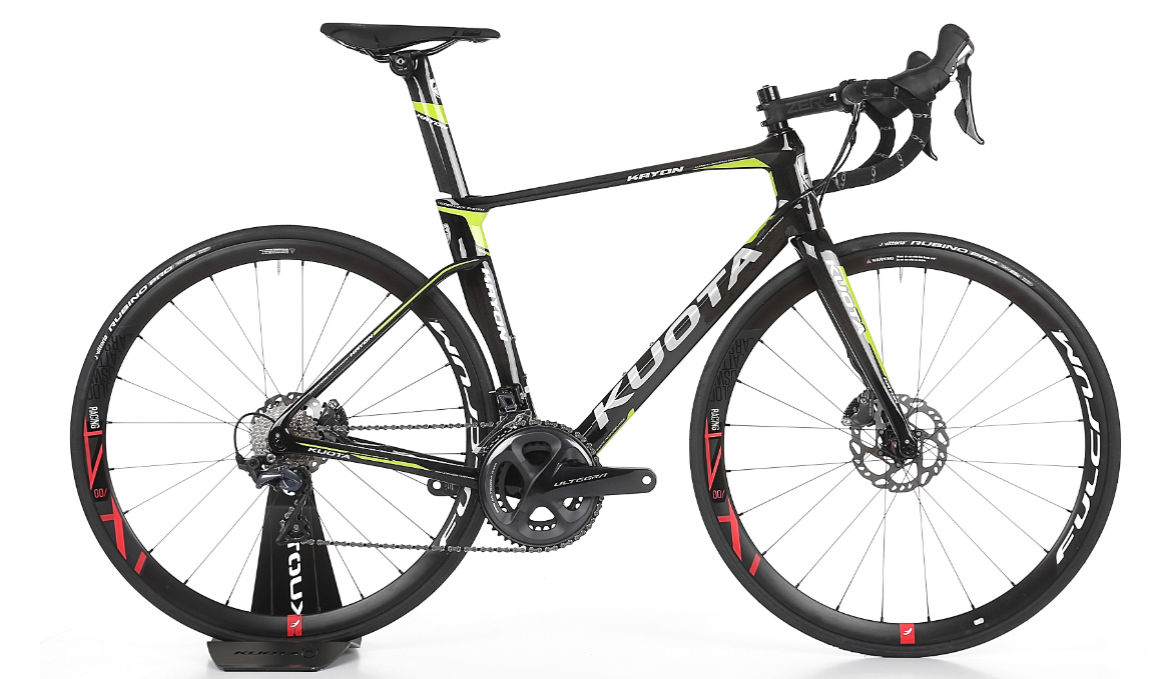

2018 Kuota Kryon Disc geometry
Full frame geometry for the 2018 Kuota Kryon Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 520 | 346 | 75 | 70 | 120 | 490 | 398 | 676 | 73 | 406 | 956 | 45 |
| XS | 535 | 368 | 74.5 | 70.5 | 135 | 505 | 430 | 723 | 73 | 406 | 967 | 45 |
| S | 540 | 372 | 74.5 | 72 | 140 | 525 | 446 | 761 | 73 | 406 | 974 | 45 |
| M | 554 | 374 | 74 | 72.5 | 160 | 539 | 471 | 779 | 70 | 406 | 979 | 45 |
| L | 570 | 380 | 73.5 | 72.5 | 180 | 559 | 500 | 793 | 70 | 406 | 995 | 45 |
| XL | 605 | 394 | 73 | 73 | 190 | 579 | 530 | 811 | 70 | 406 | 1005 | 45 |
| XXL | 626 | 408 | 73 | 73.5 | 215 | 599 | 565 | 832 | 70 | 406 | 1019 | 45 |
All measurements in millimetres unless marked (°) for angles.
