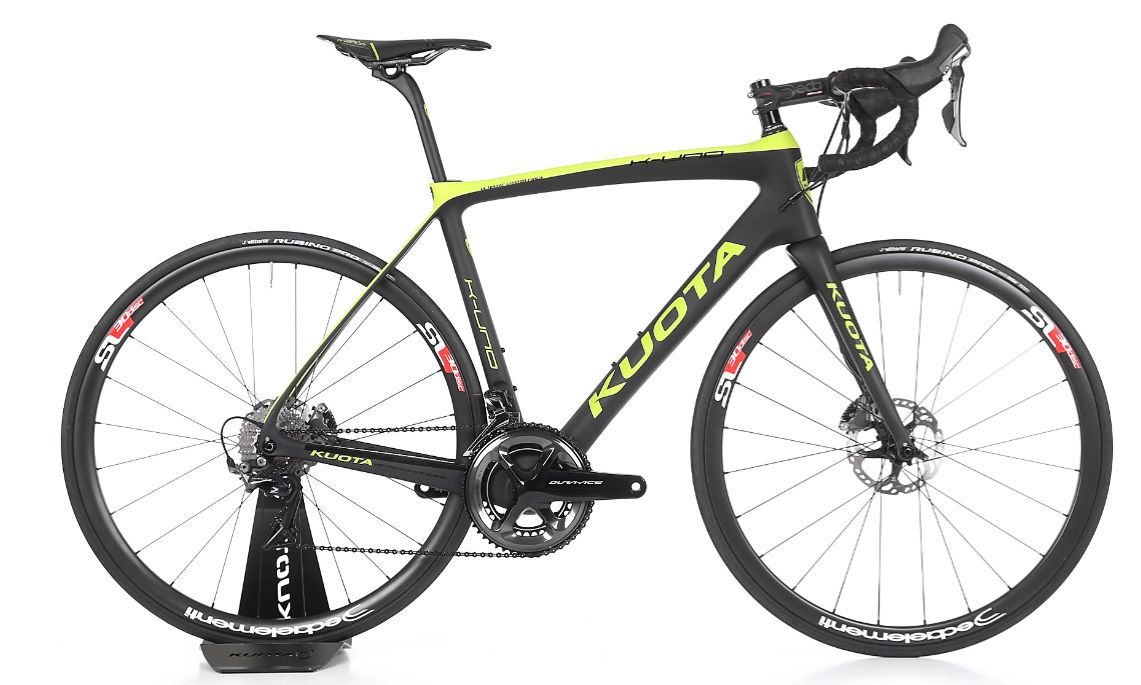

2018 Kuota K-Uno Disc geometry
Full frame geometry for the 2018 Kuota K-Uno Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 359 | 75.5 | 71 | 135 | 500 | 440 | 706 | 70 | 409 | 952 | 48 |
| S | 536 | 364 | 74 | 72 | 140 | 520 | 468 | 736 | 68 | 409 | 964 | 48 |
| M | 557 | 374 | 73.5 | 72 | 160 | 540 | 490 | 758 | 68 | 409 | 974 | 48 |
| L | 571 | 388 | 73.2 | 72.5 | 175 | 560 | 508 | 777 | 68 | 409 | 993 | 48 |
| XL | 600 | 386 | 73 | 73 | 205 | 570 | 530 | 803 | 66 | 409 | 998 | 48 |
| XXL | 630 | 395 | 72.5 | 73.5 | 234 | 593 | 560 | 805 | 66 | 409 | 1010 | 48 |
All measurements in millimetres unless marked (°) for angles.
