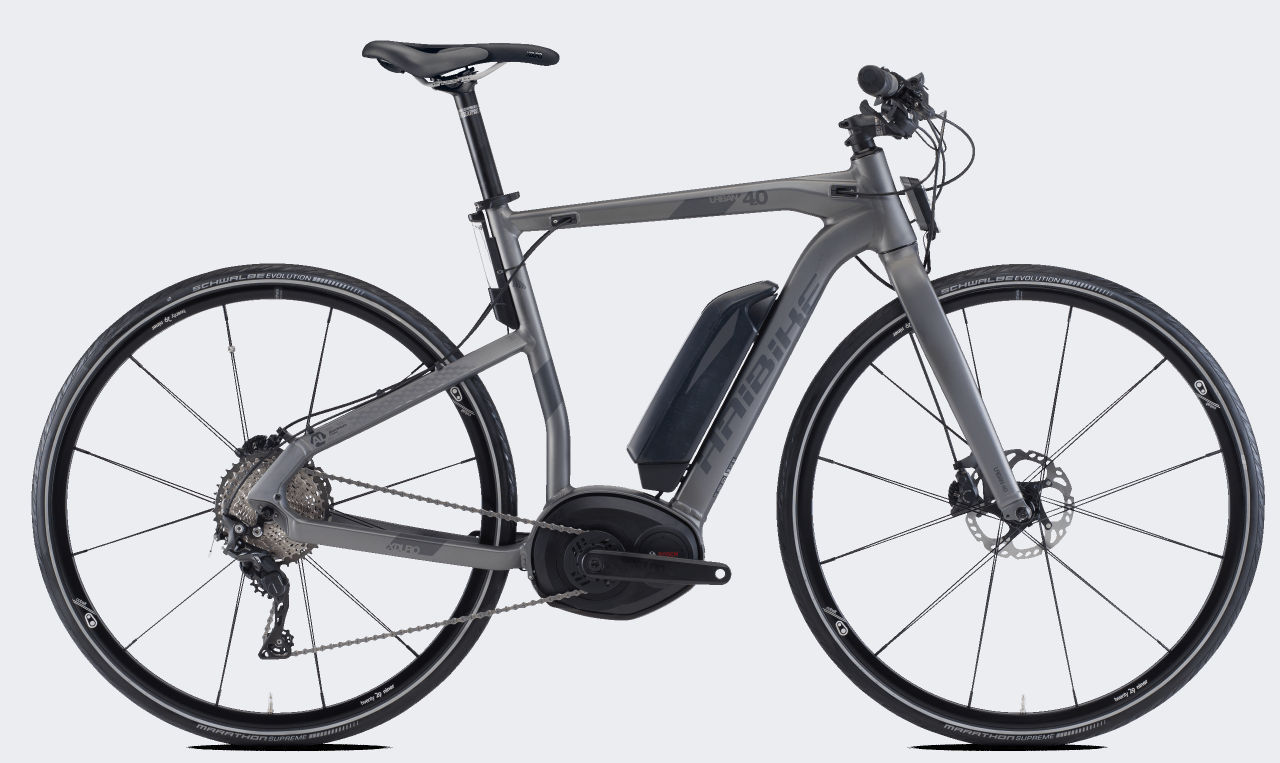

2017 Haibike Xduro Urban geometry
Full frame geometry for the 2017 Haibike Xduro Urban, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 547 | 373 | 74 | 71 | 115 | 530 | 500 | 760 | 68 | 462 | 1043 |
| S | 570 | 382 | 74 | 72 | 135 | 545 | 530 | 780 | 68 | 462 | 1049 |
| M | 592 | 390 | 74 | 73 | 155 | 560 | 560 | 810 | 68 | 462 | 1054 |
| L | 620 | 397 | 74 | 74 | 180 | 575 | 590 | 840 | 68 | 462 | 1059 |
| XL | 620 | 412 | 74 | 74 | 180 | 590 | 620 | 850 | 68 | 462 | 1074 |
All measurements in millimetres unless marked (°) for angles.
