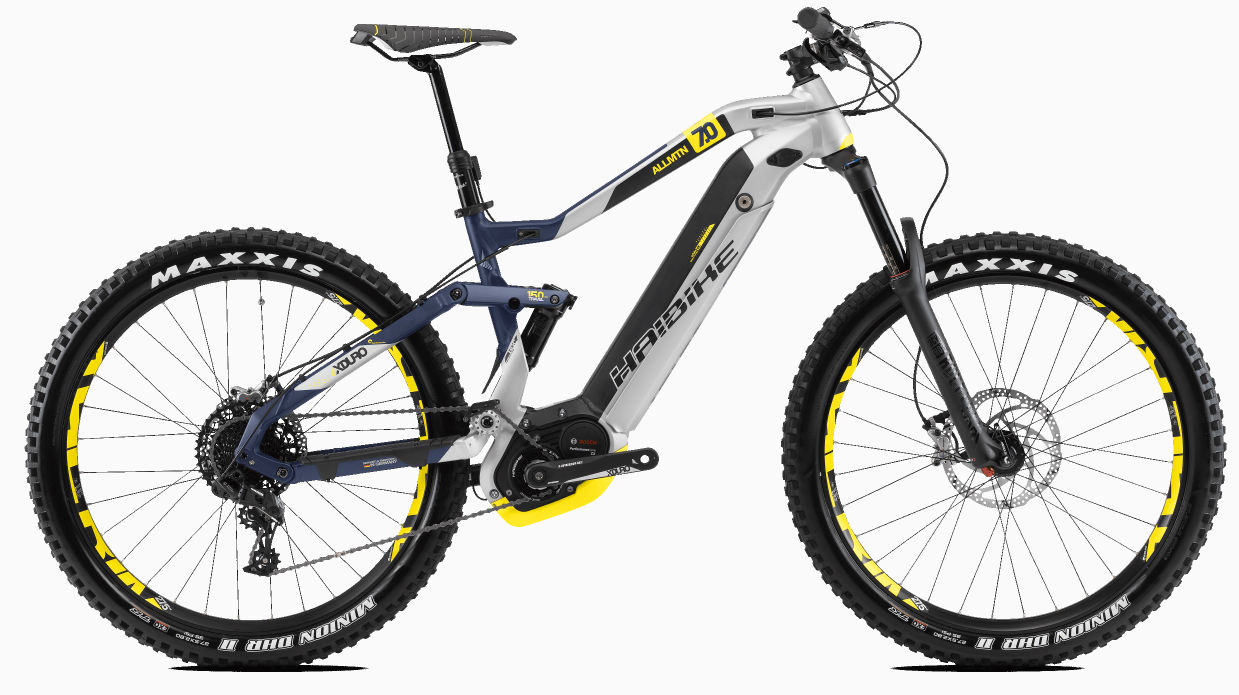

2017 Haibike Xduro AllMtn geometry
Full frame geometry for the 2017 Haibike Xduro AllMtn, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 409 | 74 | 66 | 115 | 575 | 410 | 854 | 25 | 465 | 1195 |
| M | 625 | 433 | 74 | 66 | 120 | 600 | 440 | 872 | 25 | 465 | 1221 |
| L | 630 | 457 | 74 | 66 | 125 | 625 | 470 | 890 | 25 | 465 | 1246 |
| XL | 635 | 481 | 74 | 66 | 130 | 650 | 500 | 908 | 25 | 465 | 1272 |
All measurements in millimetres unless marked (°) for angles.
