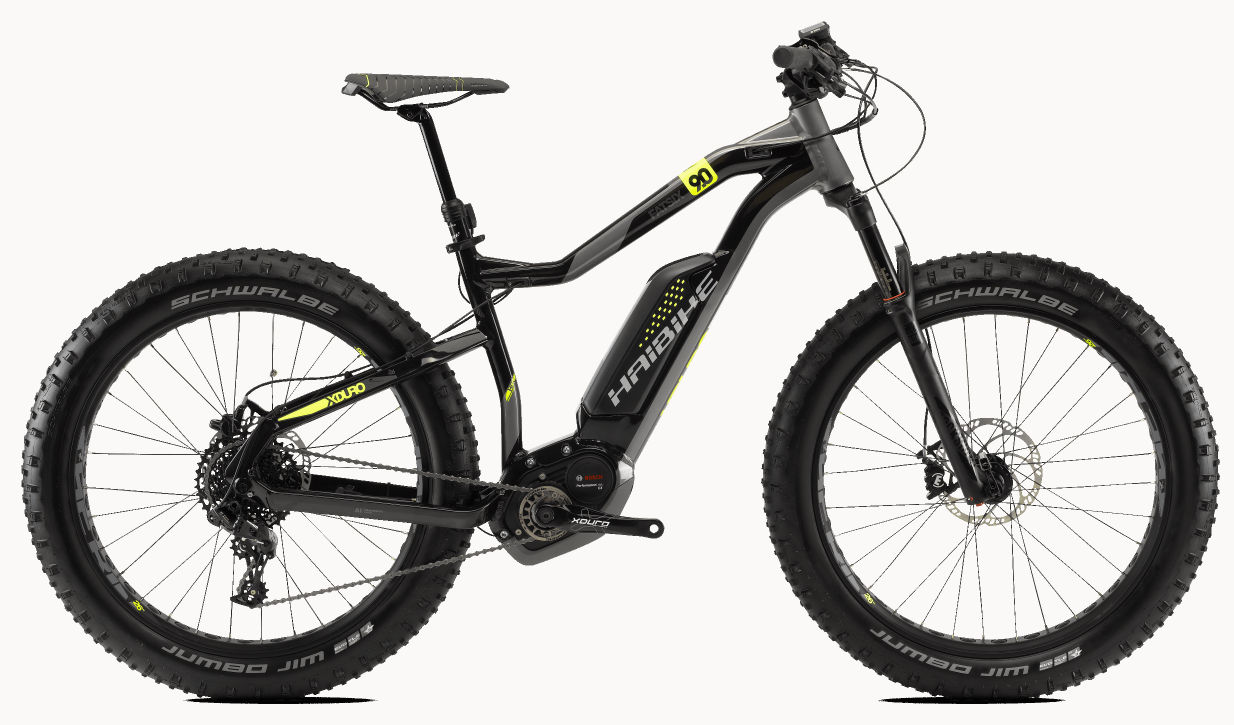

2017 Haibike Xduro Fat Six geometry
Full frame geometry for the 2017 Haibike Xduro Fat Six, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 636 | 385 | 73 | 68 | 130 | 580 | 400 | 876 | 50 | 475 | 1150 |
| M | 646 | 413 | 73 | 68 | 140 | 610 | 450 | 907 | 50 | 475 | 1181 |
| L | 655 | 440 | 73 | 68 | 150 | 640 | 500 | 938 | 50 | 475 | 1212 |
All measurements in millimetres unless marked (°) for angles.
