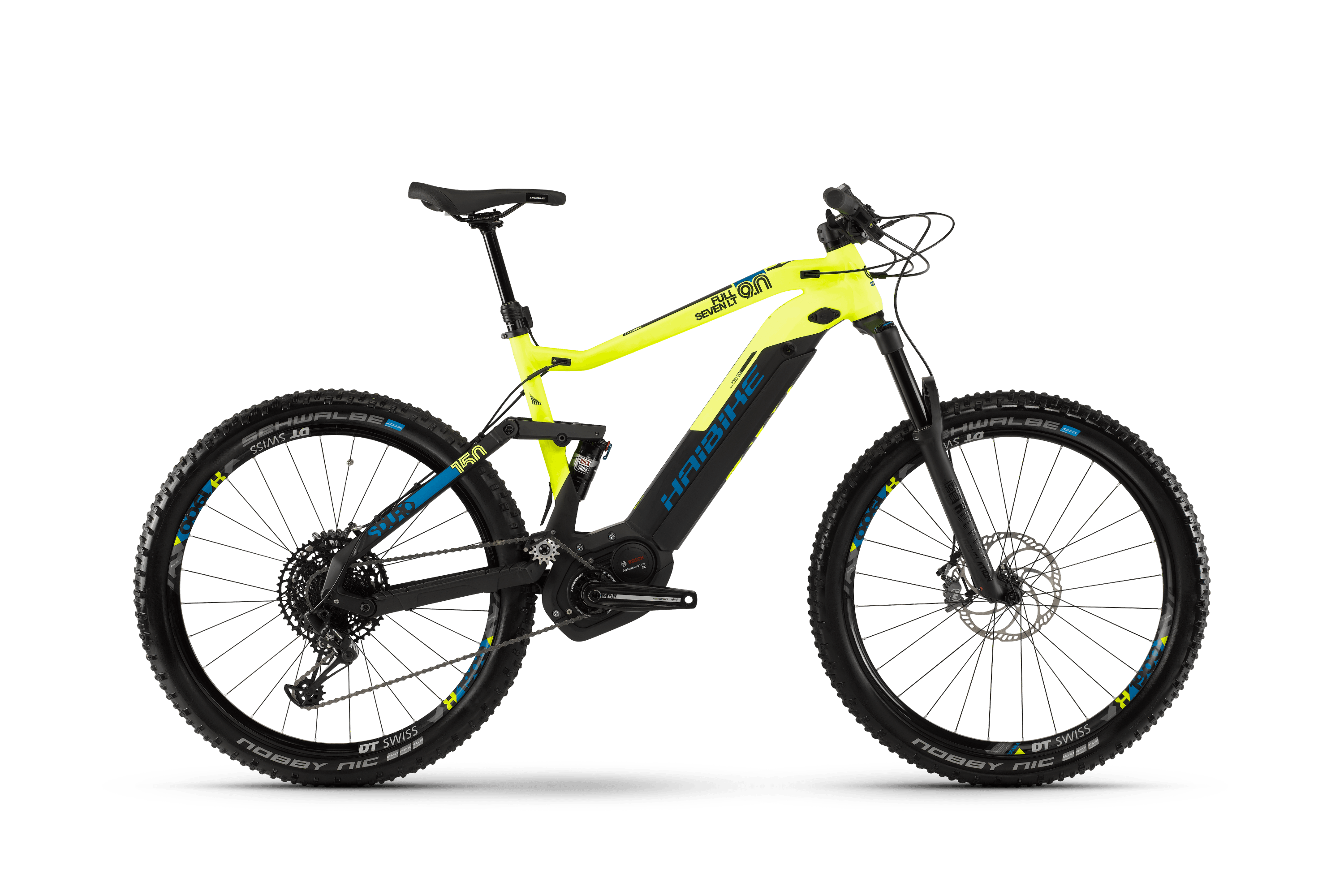

2019 Haibike Sduro FullSeven LT geometry
Full frame geometry for the 2019 Haibike Sduro FullSeven LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 612 | 413 | 73 | 73 | 125 | 600 | 440 | 830 | 0 | 465 | 1193 |
| L | 616 | 432 | 73 | 73 | 130 | 620 | 480 | 830 | 0 | 465 | 1214 |
| XL | 621 | 450 | 73 | 73 | 135 | 640 | 520 | 830 | 0 | 465 | 1234 |
| S | 625 | 389 | 73 | 73 | 140 | 580 | 400 | 830 | 0 | 465 | 1175 |
All measurements in millimetres unless marked (°) for angles.
