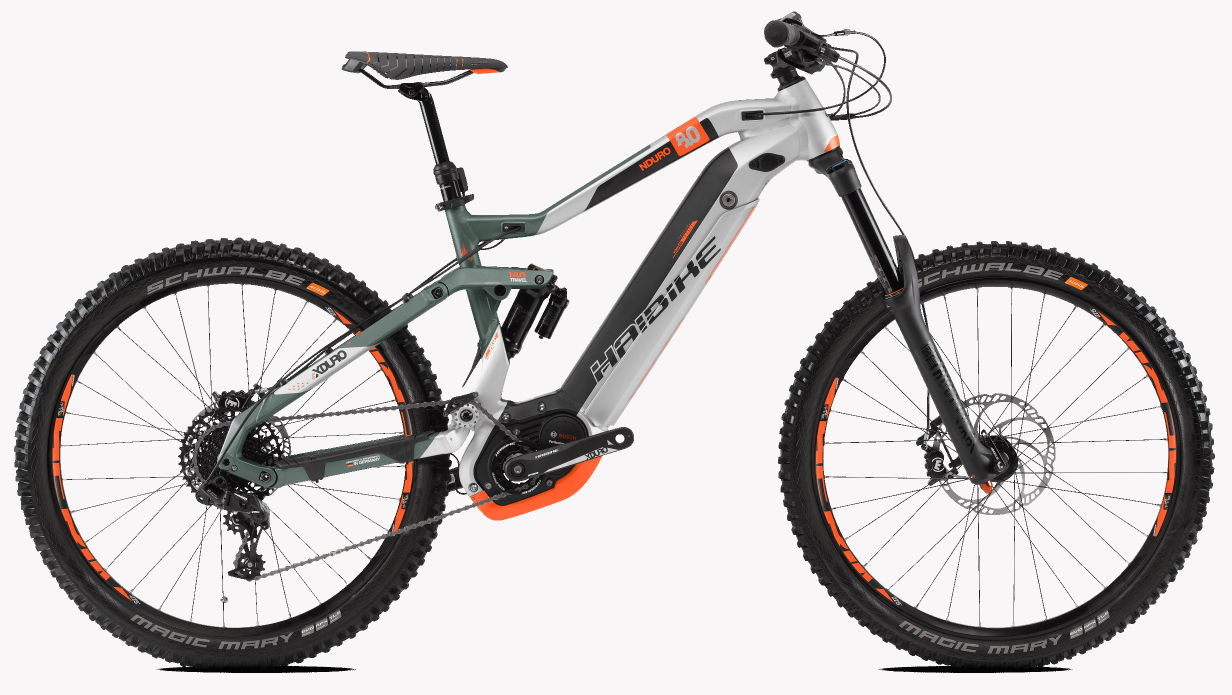

2017 Haibike Xduro Nduro geometry
Full frame geometry for the 2017 Haibike Xduro Nduro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 412 | 74 | 65 | 115 | 575 | 420 | 869 | 5 | 460 | 1206 |
| M | 615 | 436 | 74 | 65 | 120 | 600 | 440 | 882 | 5 | 460 | 1231 |
| L | 620 | 460 | 74 | 65 | 125 | 625 | 460 | 895 | 5 | 460 | 1257 |
| XL | 625 | 483 | 74 | 65 | 130 | 650 | 480 | 907 | 5 | 460 | 1283 |
All measurements in millimetres unless marked (°) for angles.
