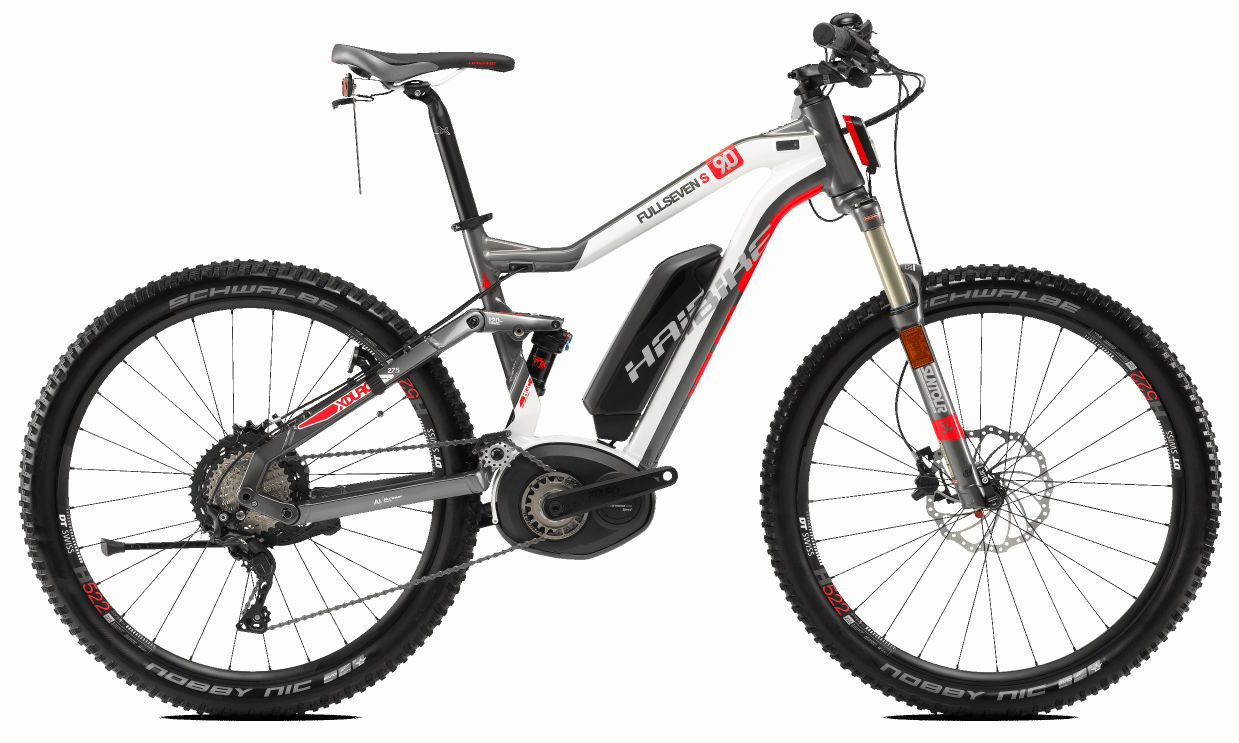

2017 Haibike Xduro Full Seven S geometry
Full frame geometry for the 2017 Haibike Xduro Full Seven S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 612 | 408 | 73 | 69 | 140 | 595 | 500 | 810 | 20 | 465 | 1145 |
| M | 612 | 393 | 73 | 69 | 140 | 580 | 450 | 780 | 20 | 465 | 1130 |
| S | 612 | 378 | 73 | 69 | 140 | 565 | 400 | 750 | 20 | 465 | 1115 |
| XL | 612 | 423 | 73 | 69 | 140 | 610 | 550 | 820 | 20 | 465 | 1160 |
All measurements in millimetres unless marked (°) for angles.
