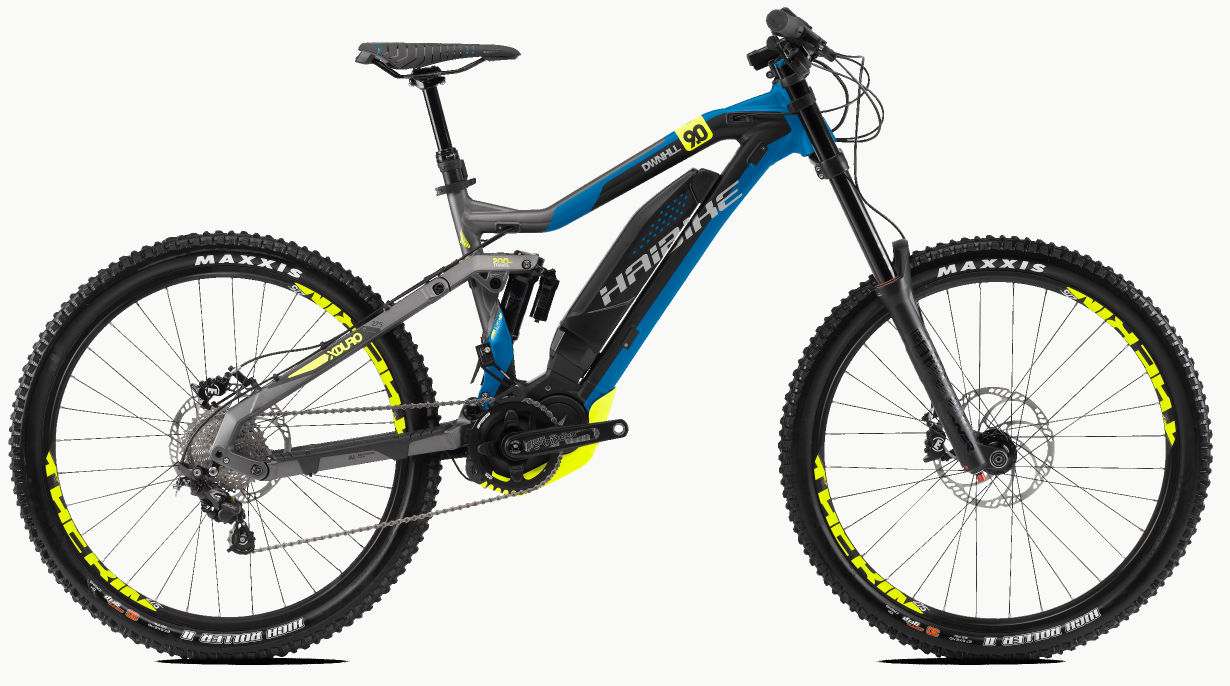

2017 Haibike Xduro Dwnhll geometry
Full frame geometry for the 2017 Haibike Xduro Dwnhll, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 407 | 74 | 63 | 120 | 560 | 420 | 875 | 15 | 470 | 1245 |
| M | 598 | 430 | 74 | 63 | 125 | 585 | 430 | 883 | 15 | 470 | 1271 |
| L | 602 | 454 | 74 | 63 | 130 | 610 | 440 | 890 | 15 | 470 | 1297 |
| XL | 606 | 478 | 74 | 63 | 135 | 635 | 450 | 897 | 15 | 470 | 1323 |
All measurements in millimetres unless marked (°) for angles.
