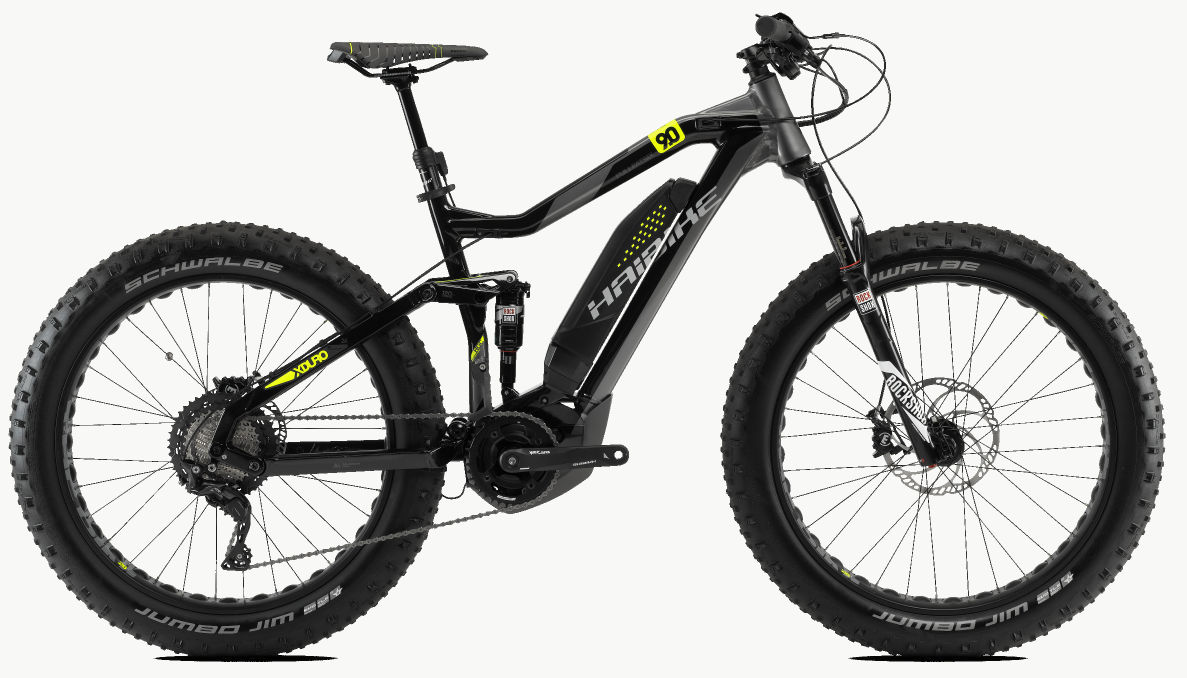

2017 Haibike Xduro Full Fat Six geometry
Full frame geometry for the 2017 Haibike Xduro Full Fat Six, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 382 | 73 | 68 | 130 | 570 | 420 | 780 | 20 | 485 | 1162 |
| M | 626 | 409 | 73 | 68 | 140 | 600 | 460 | 810 | 20 | 485 | 1193 |
| L | 635 | 436 | 73 | 68 | 150 | 630 | 500 | 820 | 20 | 485 | 1224 |
All measurements in millimetres unless marked (°) for angles.
