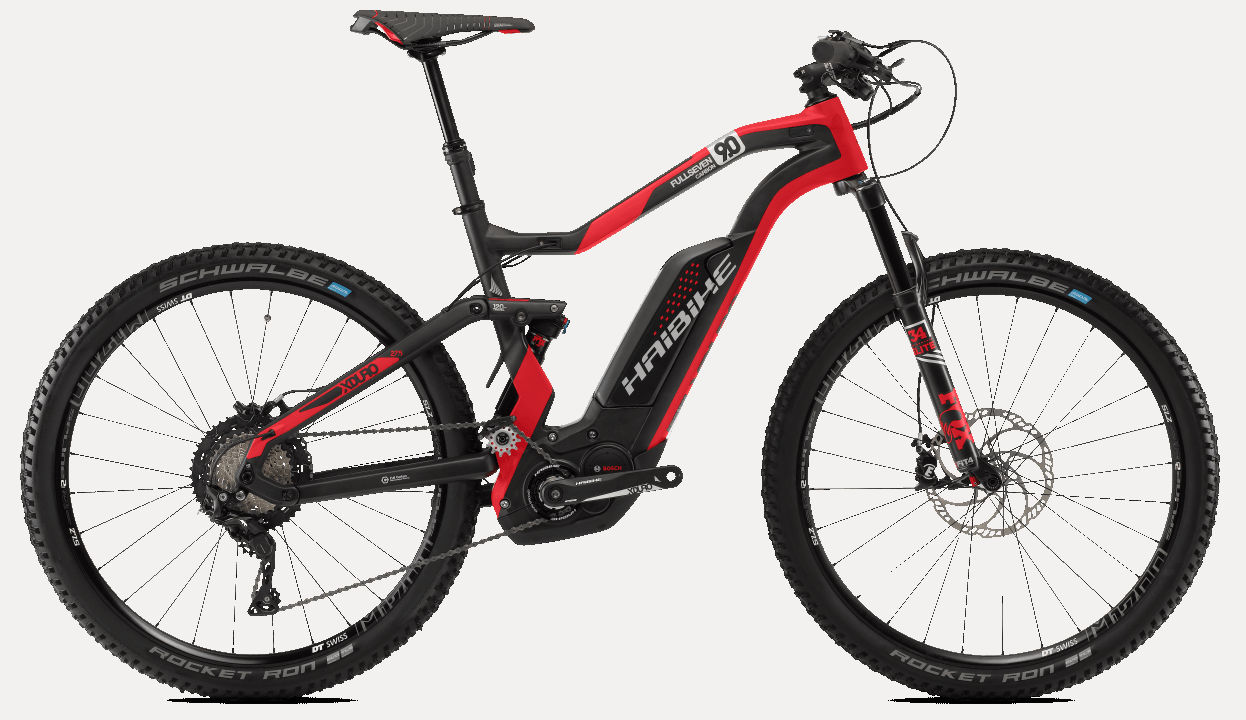

2017 Haibike Xduro Full Seven Carbon geometry
Full frame geometry for the 2017 Haibike Xduro Full Seven Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 382 | 73 | 69 | 110 | 560 | 400 | 760 | 20 | 460 | 1102 |
| M | 593 | 399 | 73 | 69 | 120 | 580 | 450 | 780 | 20 | 460 | 1123 |
| L | 602 | 416 | 73 | 69 | 130 | 600 | 500 | 800 | 20 | 460 | 1144 |
All measurements in millimetres unless marked (°) for angles.
