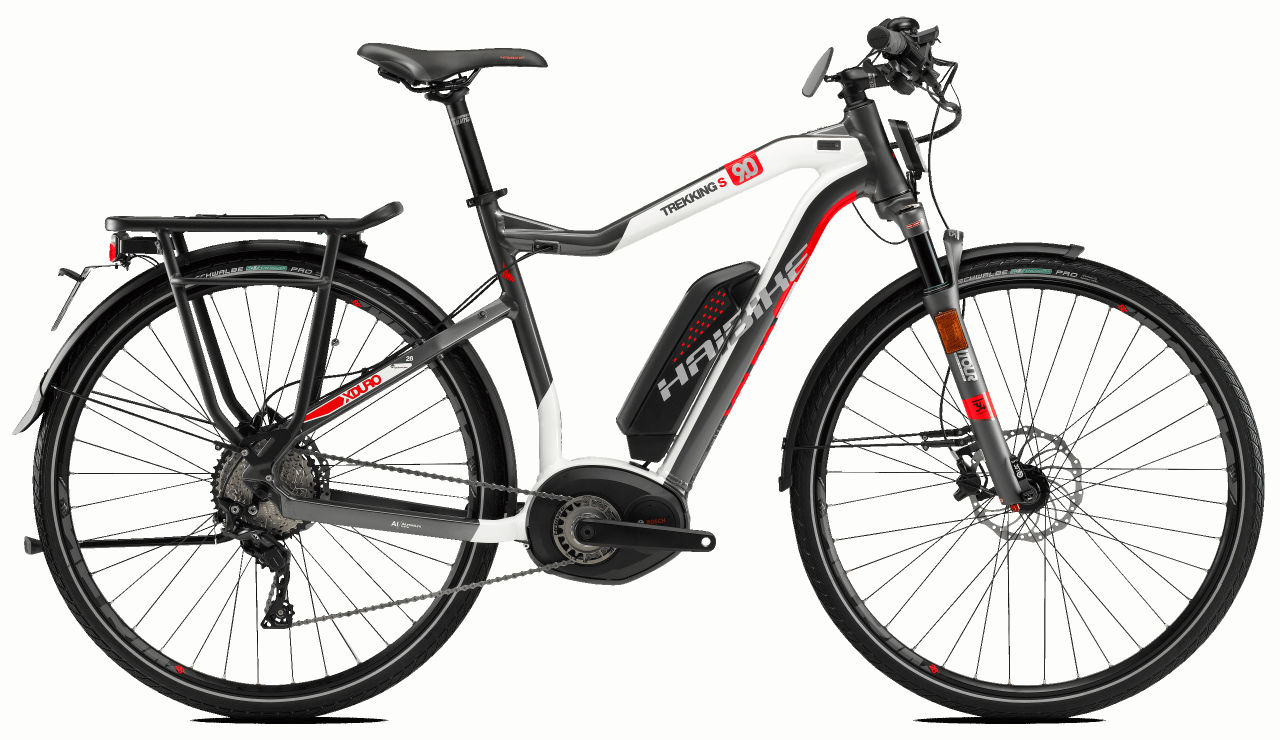

2017 Haibike Xduro Trekking S geometry
Full frame geometry for the 2017 Haibike Xduro Trekking S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 620 | 389 | 72.5 | 70.5 | 135 | 585 | 480 | 770 | 60 | 482 | 1107 |
| S | 625 | 403 | 72.5 | 70.5 | 140 | 600 | 520 | 810 | 60 | 482 | 1123 |
| M | 630 | 417 | 72.5 | 70.5 | 145 | 615 | 560 | 790 | 60 | 482 | 1138 |
| L | 634 | 430 | 72.5 | 70.5 | 150 | 630 | 600 | 830 | 60 | 482 | 1153 |
| XL | 634 | 445 | 72.5 | 70.5 | 150 | 645 | 640 | 860 | 60 | 482 | 1168 |
All measurements in millimetres unless marked (°) for angles.
