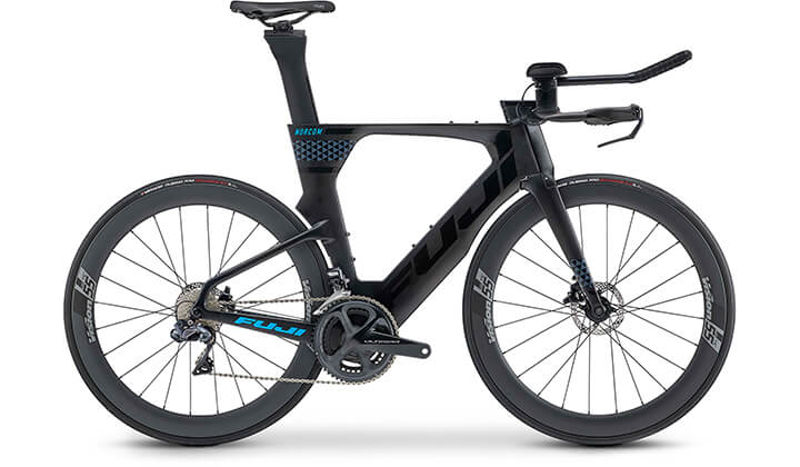

2022 Fuji Norcom Straight geometry
Full frame geometry for the 2022 Fuji Norcom Straight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S 50.5cm | 499 | 365 | 77 | 100 | 480 | 505 | 770 | 72 | 70.3 | 954 | 45 | 58.8 |
| M 52.5cm | 518 | 386 | 77 | 115 | 505 | 525 | 778 | 72 | 71.5 | 970 | 45 | 58.8 |
| L 55cm | 543 | 405 | 77 | 140 | 530 | 550 | 785 | 72 | 72 | 993 | 45 | 58.8 |
| XL 57.5cm | 568 | 429 | 77 | 165 | 560 | 577 | 821 | 72 | 72 | 1020 | 45 | 58.8 |
All measurements in millimetres unless marked (°) for angles.
